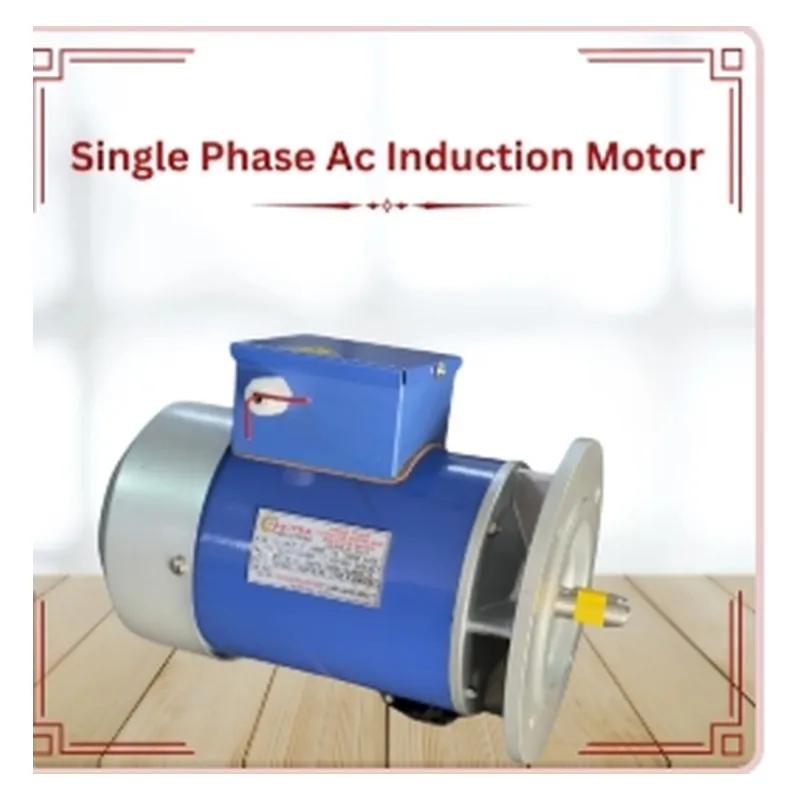

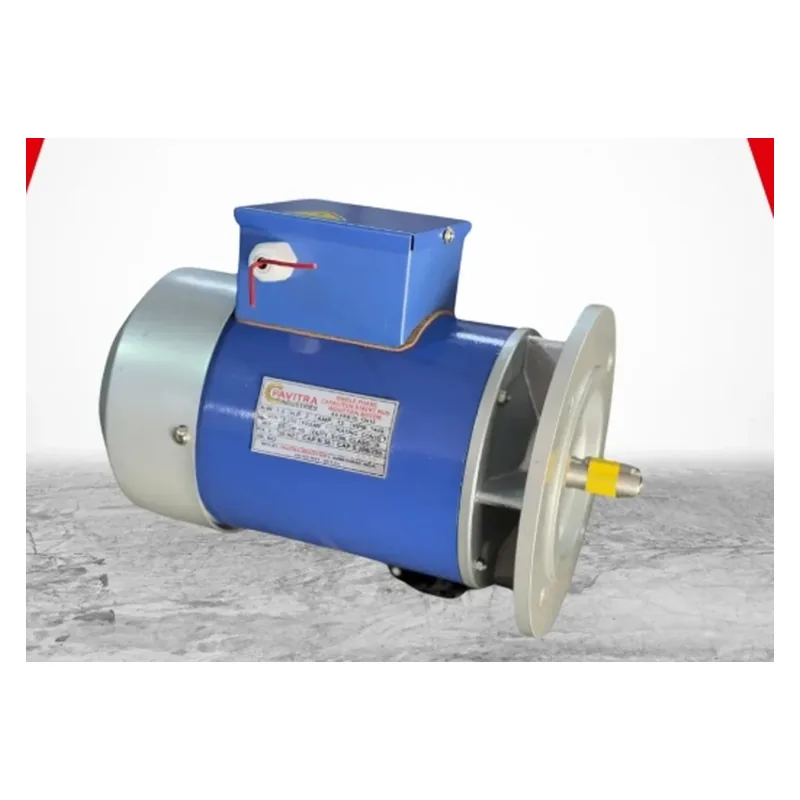

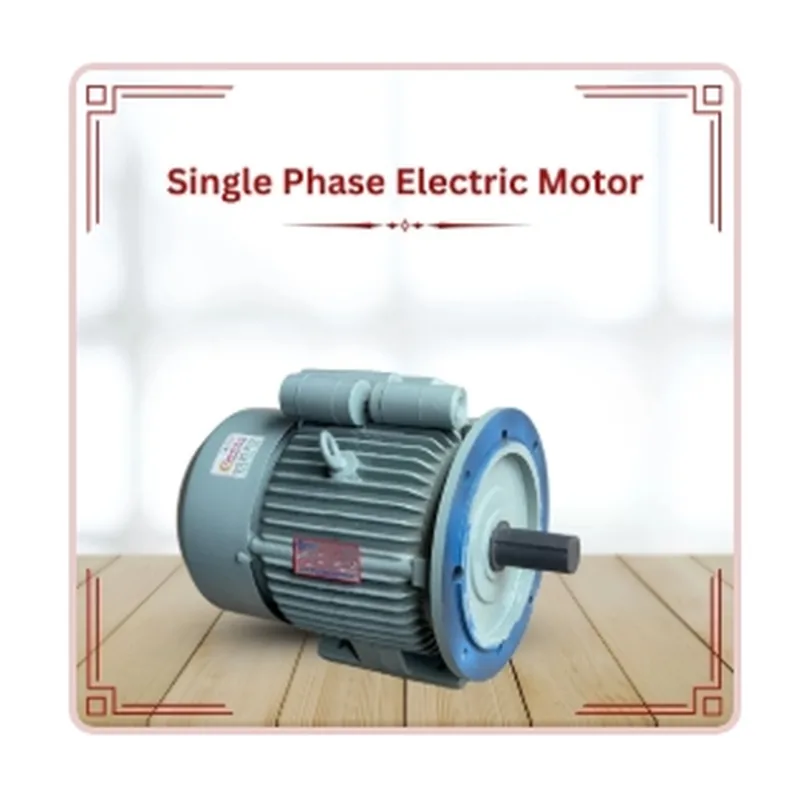

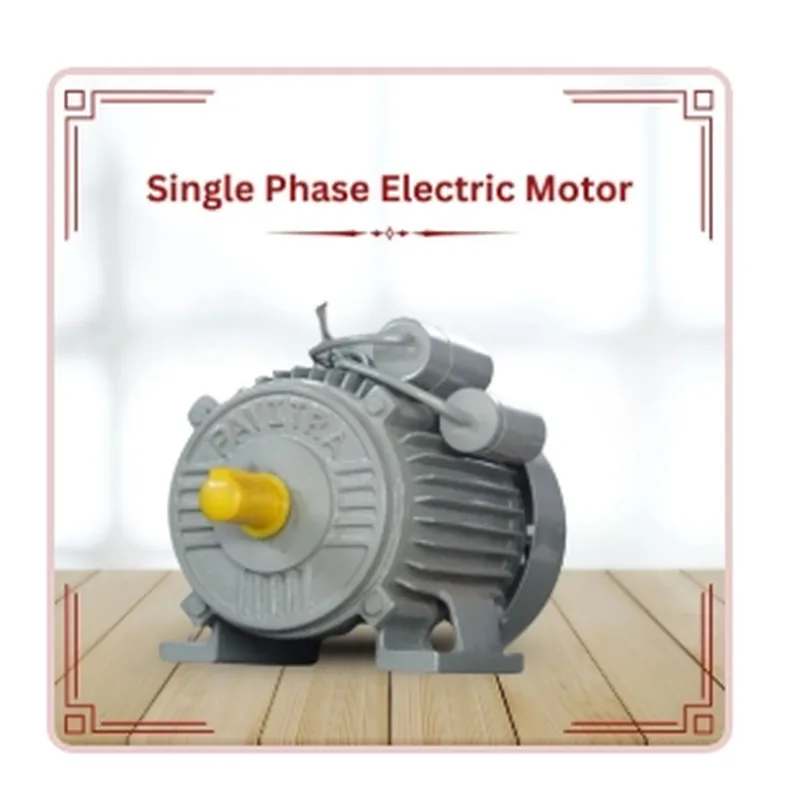

Electric Motors – Single Phase Electric Motor
Single Phase Electric Motor Ahmedabad from Pavitra Industries is designed for applications that require reliable and efficient single-phase AC power. These motors are suitable for domestic, commercial and light industrial equipment where compact design, durability and dependable performance are important.
The motors are designed as per IEC:34/7 and are available with B3, B5 and B14 mounting options. Furthermore, the product range offers different power ratings, speeds, protection levels and customization options to suit various equipment requirements.
Key Features of Single Phase Electric Motor
- Single-phase AC electric motor
- Power range from 0.25 HP to 5 HP
- 0.18 kW to 3.7 kW range
- Smooth and silent operation
- High starting torque
- Energy-efficient design
- Minimal maintenance requirement
- Rugged construction
- TEFC enclosure
- S1 continuous-duty operation
- Multiple speed options
- Custom shaft options available
- Custom voltage options available
- Multiple mounting configurations
- Thermal overload protection available as an option
- Suitable for VFD use with caution
These features and options are based on the specifications provided by Pavitra Industries.
Benefits of Single Phase Electric Motor
A Single Phase Electric Motor provides a practical solution for equipment operating on single-phase electrical power.
Main benefits include:
- Reliable motor performance
- Smooth and quiet operation
- High starting torque
- Energy-efficient operation
- Low maintenance requirements
- Compact and rugged construction
- Suitable for continuous-duty applications
- Flexible mounting options
- Multiple speed choices
- Custom voltage options
- Custom shaft and mounting options
Moreover, the motor is available with standard and optional protection configurations, helping users select a suitable setup according to their application requirements.
Applications of Single Phase Electric Motor
The Single Phase Electric Motor Ahmedabad range is suitable for a variety of domestic, commercial and light industrial applications.
Common applications include:
- Air compressors
- Domestic water pumps
- Small machine tools
- Fans and blowers
- Agricultural equipment
- Conveyors
- Mixers
- Printing machinery
- Packaging machinery
These applications are specifically listed in the supplied Pavitra Industries product information.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Single Phase Electric Motor |
| Product Category | Electric Motors |
| Manufacturer | Pavitra Industries |
| Location | Ahmedabad, Gujarat |
| Motor Type | Single Phase AC Electric Motor |
| Power Range | 0.25 HP to 5 HP |
| Power Range | 0.18 kW to 3.7 kW |
| Voltage | 230V ±10% |
| Phase | Single Phase |
| Frequency | 50 Hz |
| Custom Voltage | 110V / 220V / 240V on request |
| Speed Options | 750 / 1000 / 1500 / 3000 RPM |
| Insulation | Class B Standard, Class F Optional |
| Enclosure | TEFC |
| Protection | IP44 Standard, IP55 Optional |
| Duty | S1 Continuous Duty |
| Frame Sizes | 63 to 132 |
| Mounting | B3, B5, B14, B35 |
| Standard | IEC:34/7 |
The above specifications are taken from the supplied product document.
Mounting Options
Pavitra Industries provides multiple mounting configurations for different machinery requirements:
- B3 – Foot mounting
- B5 – Flange mounting
- B14 – Face mounting
- B35 – Foot cum flange mounting
Why Choose Pavitra Industries?
Pavitra Industries manufactures Single Phase Electric Motors focused on reliable performance, efficiency and durability. The available range provides different power ratings, speeds, mounting arrangements and protection options.
Additionally, custom shaft, voltage and mounting configurations are available according to the supplied product information.
Areas Served
Pavitra Industries is located in:
- Ahmedabad
- Gujarat
Service and supply availability should be confirmed with Pavitra Industries for your specific location and motor requirement.
Accessories Included
Accessories included are not specified in the supplied product information. Please confirm the included accessories, mounting hardware and other components with the supplier before ordering.
Explore More Products
- Electric Motors
- Three Phase AC Induction Motors
- Industrial Electric Motors
- Single Phase Motors
- Industrial & Engineering Products
- Electric Motor Components
- Three Phase AC Induction Motors
- Industrial & Engineering Products
Frequently Asked Questions
1. What is a Single Phase Electric Motor?
A Single Phase Electric Motor is an AC motor designed to operate using single-phase electrical power. Pavitra Industries offers motors suitable for domestic, commercial and light industrial applications.
2. What is the power range of the Single Phase Electric Motor?
The available power range is 0.25 HP to 5 HP, equivalent to 0.18 kW to 3.7 kW.
3. What voltage does the motor use?
The standard voltage is 230V ±10%, single phase, 50 Hz. Custom voltage options of 110V, 220V and 240V are available on request.
4. What speed options are available?
The listed speed options are 750, 1000, 1500 and 3000 RPM.
5. What type of enclosure does the motor have?
The motor uses a TEFC (Totally Enclosed Fan Cooled) enclosure.
6. What protection class is available?
IP44 is specified as standard, while IP55 is available as an option.
7. What mounting options are available?
The motor is available with B3 foot, B5 flange, B14 face and B35 foot-cum-flange mounting options.
8. Where can this Single Phase Electric Motor be used?
Applications include air compressors, domestic water pumps, small machine tools, fans, blowers, agricultural equipment, conveyors, mixers, printing machinery and packaging machinery.
9. Can the motor be customized?
Yes. Custom shaft, voltage and mounting options are listed in the supplied product information.
10. Is the motor suitable for continuous operation?
Yes. The specified duty cycle is S1 continuous duty.
