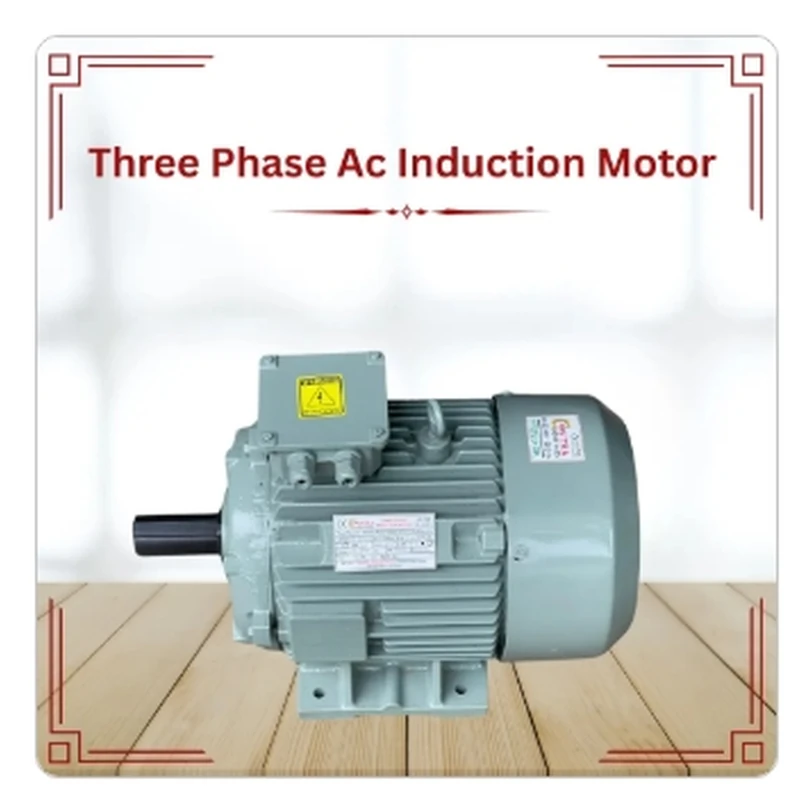

Electric Motors – Three Phase AC Induction Motor

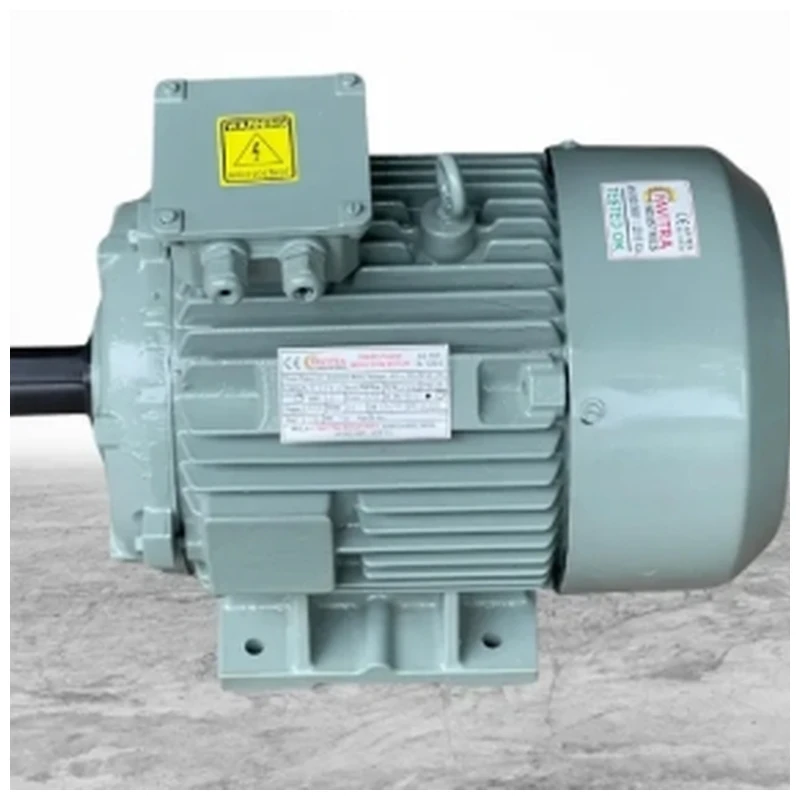

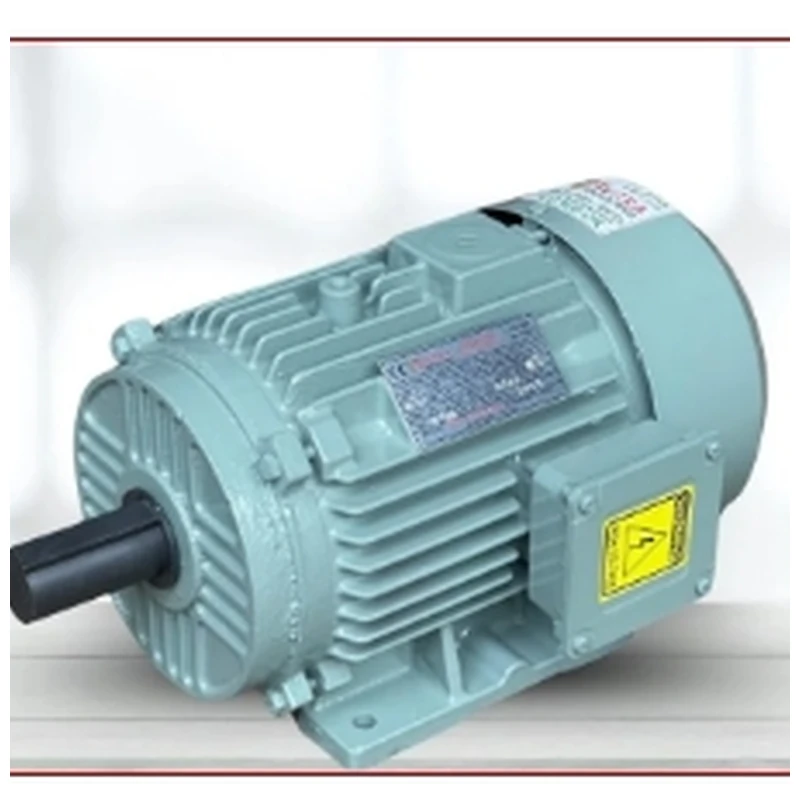

Three Phase AC Induction Motor Ahmedabad from Pavitra Industries is designed for demanding industrial environments where reliable, efficient and consistent motor performance is required. These high-performance three-phase squirrel cage induction motors are available in a wide power range from 0.25 HP to 75 HP (0.18 kW to 55 kW).
Moreover, the motors support 415V ±10%, three-phase, 50 Hz operation, with custom voltage options available on request. They use a TEFC enclosure and provide IP55 standard protection, while IP65 protection is available as an option.
Key Features of Three Phase AC Induction Motor
- Three-phase squirrel cage induction motor
- Power range from 0.25 HP to 75 HP
- 0.18 kW to 55 kW power range
- 415V ±10% standard voltage
- 50 Hz frequency
- Custom voltage options available
- 750 / 1000 / 1500 / 3000 RPM options
- Class F insulation as standard
- Class H insulation available as an option

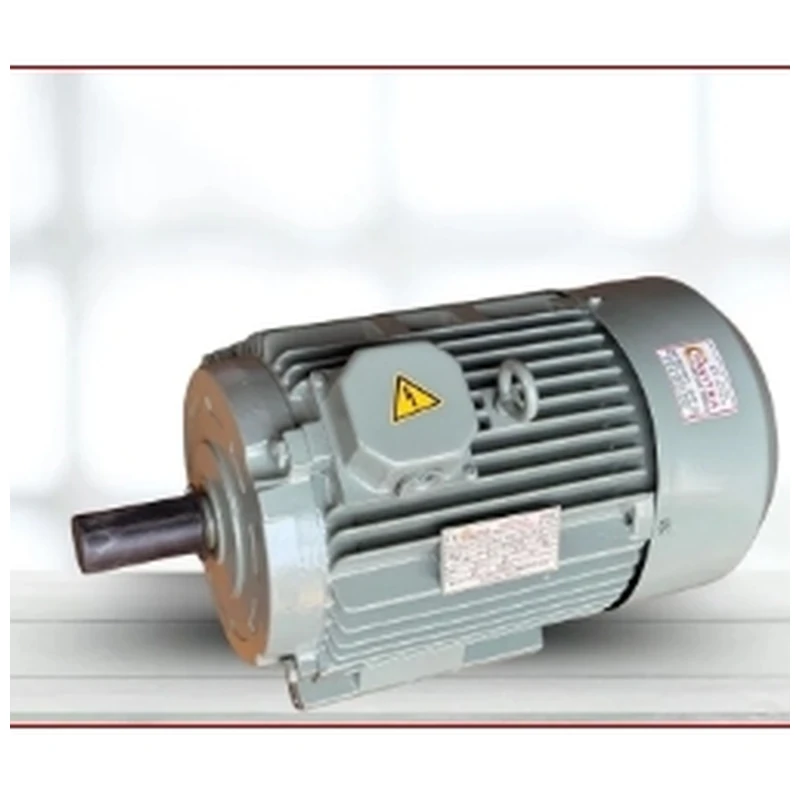

- TEFC enclosure
- IP55 standard protection
- IP65 protection available as an option
- S1 continuous-duty operation
- B3 foot mounting

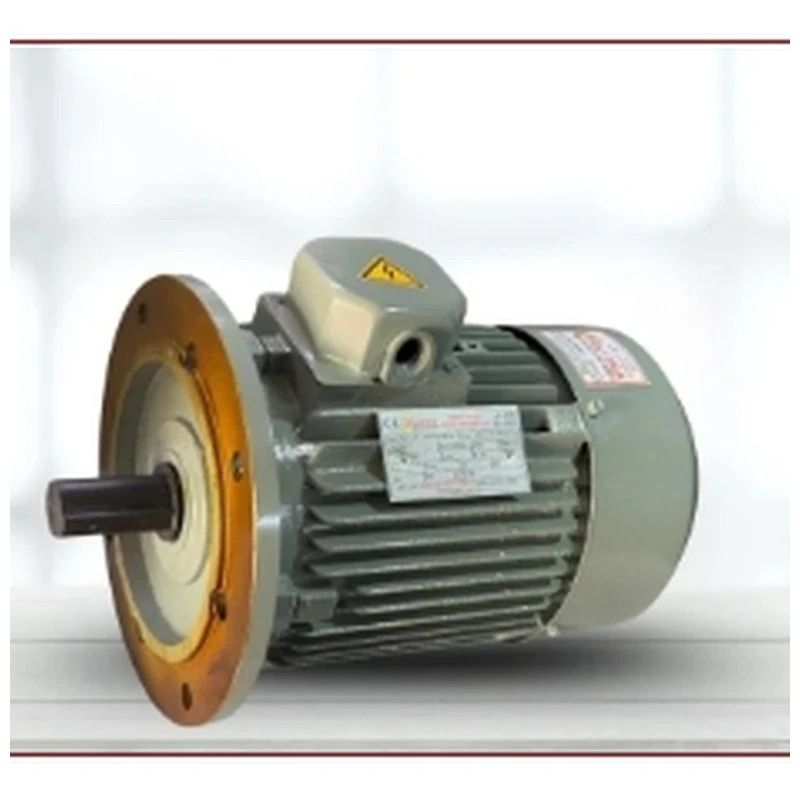

- B5 flange mounting
- B14 face mounting
- Combination mounting options
- VFD compatible
- Custom shaft, voltage and mounting options
The supplied specifications list frame sizes from 63 to 225M/L and multiple mounting configurations.
Benefits of Three Phase AC Induction Motor
A Three Phase AC Induction Motor provides a practical solution for industrial machinery requiring dependable mechanical power.
Main benefits include:
- Reliable operation for industrial equipment
- High starting torque and performance
- Smooth and quiet operation
- Minimal-maintenance design
- Robust construction for industrial use
- Suitable for continuous-duty applications
- VFD compatibility for suitable applications
- Flexible mounting options
- Multiple speed options
- Custom shaft and voltage options
- Available across a broad power range
Furthermore, optional IE2 / IE3 efficiency configurations are listed in the product information, allowing buyers to select an appropriate motor according to their application requirements.
Applications of Three Phase AC Induction Motor
The motor range is suitable for various industrial and commercial machinery applications.
Common applications include:
- Material handling equipment
- Pumps
- Blowers
- Compressors
- Machine tools
- Conveyor systems
- Textile machinery
- Printing machinery
- Agricultural equipment
- Irrigation equipment
The supplied Pavitra Industries information specifically identifies these applications for the three-phase induction motor range.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Three Phase AC Induction Motor |
| Motor Type | Three-Phase Squirrel Cage Induction Motor |
| Manufacturer | Pavitra Industries |
| Location | Ahmedabad, Gujarat |
| Power Range | 0.25 HP to 75 HP |
| Power Range | 0.18 kW to 55 kW |
| Standard Voltage | 415V ±10% |
| Phase | 3 Phase |
| Frequency | 50 Hz |
| Custom Voltage | 220V / 380V / 460V / 525V on request |
| Speed Options | 750 / 1000 / 1500 / 3000 RPM |
| Insulation | Class F Standard, Class H Optional |
| Enclosure | TEFC |
| Protection | IP55 Standard, IP65 Optional |
| Duty | S1 Continuous Duty |
| Frame Size | 63 to 225M/L |
| Mounting | B3, B5, B14 and Combination |
| VFD Compatibility | Available |
| Customization | Shaft / Voltage / Mounting |
These specifications are based on the supplied product information and should be confirmed for the specific motor model before ordering.
Why Choose Pavitra Industries?
Pavitra Industries offers Three Phase AC Induction Motors designed for a wide range of industrial applications. The product range combines different power ratings, speeds, mounting arrangements and protection options.
In addition, customers can enquire about custom shafts, custom voltages and custom mounting configurations based on their machinery requirements.
The broad 0.25 HP to 75 HP range also makes it possible to select a suitable motor according to equipment requirements rather than using a single standard configuration.
Areas Served
Pavitra Industries supplies and serves enquiries for Three Phase AC Induction Motors in:
- Ahmedabad
- Odhav
- Vatva
- Naroda
- Bapunagar
- Gujarat
- Industrial areas across Ahmedabad
- Across India
Explore More Products
- Electric Motors
- Single Phase Motors
- Brake Motors
- Vibratory Motors
- Flange Mounted Motors
- Foot Mounted Motors
- Industrial Motors
- Special Purpose Motors
- Custom Built Electric Motors
- Industrial & Engineering Products
- Electric Motors Suppliers in Ahmedabad
Frequently Asked Questions
1. What is a Three Phase AC Induction Motor?
A Three Phase AC Induction Motor is an industrial electric motor designed to convert three-phase electrical energy into mechanical power. The Pavitra Industries range uses a squirrel cage induction motor design.
2. What is the power range of these motors?
The available power range is 0.25 HP to 75 HP, equivalent to approximately 0.18 kW to 55 kW.
3. What voltage does the motor use?
The standard specification is 415V ±10%, three phase, 50 Hz. Custom voltage options of 220V, 380V, 460V and 525V are available on request.
4. What speed options are available?
The listed speed options are 750, 1000, 1500 and 3000 RPM.
5. Is the Three Phase AC Induction Motor suitable for continuous operation?
Yes. The specified duty cycle is S1 continuous duty.
6. Is the motor compatible with VFD drives?
Yes. VFD compatibility is listed as one of the key features.
7. What mounting options are available?
The available mounting options include B3 foot, B5 flange, B14 face and combination mounting.
8. Where can these motors be used?
Applications include material handling equipment, pumps, blowers, compressors, machine tools, conveyors, textile and printing machinery, agricultural and irrigation equipment.
9. Are customized motors available?
Yes. Custom shaft, voltage and mounting options are listed in the supplied product information.
10. How can I enquire about a Three Phase AC Induction Motor Ahmedabad?
Send an enquiry through TradersInd with your required HP/kW, RPM, voltage, mounting type and application details to connect with the supplier.
