Horizontal Slurry Pumps India
Horizontal Slurry Pumps India from Mineralx Flowtech Pvt Ltd. are designed for demanding industrial applications involving abrasive, high-density and solids-laden slurry. These heavy-duty pumps are suitable for mining, mineral processing, construction, wastewater treatment and other slurry transportation requirements.
The product range includes four models: 3×2, 4×3, 6×4 and 8×6. Each model is designed for different flow and head requirements, from compact, light-duty slurry handling to large-capacity applications involving coarse particles and demanding operating conditions.
Moreover, Mineralx Flowtech describes its slurry pumps as featuring heavy-duty casings, wear-resistant liners, high-performance impellers and precision-engineered hydraulic components. These design features support wear resistance, maintainability and reliable operation in challenging industrial environments.
Heavy-duty casing: Designed for demanding slurry-handling conditions.
Wear-resistant liners: Help manage abrasive wear during slurry transportation.
High-performance impellers: Designed to support efficient slurry movement.
Precision-engineered hydraulics: Support consistent pumping performance.
Serviceable construction: Interchangeable liners and parts can simplify maintenance.
Heavy-duty shaft and bearings: Designed to support operation in challenging applications.
Multiple model options: Four horizontal models cover different flow and head requirements.
Installation flexibility: Frame-mounted and close-coupled drive configurations are listed by Mineralx Flowtech.
Actual construction materials, configuration and component options should be confirmed for the selected model and application.
Mineralx Flowtech offers the following horizontal slurry pump models.
| Model | Maximum Flow Rate | Maximum Head | ApplicationDescription |
|---|---|---|---|
| 3×2 | Up to 140 m³/h | Up to 65 m | Compact, light-duty slurry handling |
| 4×3 | Up to 300 m³/h | Up to 70 m | General-purpose and medium-duty applications |
| 6×4 | Up to 500 m³/h | Up to 60 m | Heavy-duty abrasive and corrosive slurry handling |
| 8×6 | Up to 1,000 m³/h | Up to 50 m | Large-capacity, severe-duty slurry applications |
These figures are the published maximum values for each model, not a guarantee that maximum flow and maximum head will occur simultaneously. Confirm the applicable pump performance curve and operating duty with the supplier before selection.

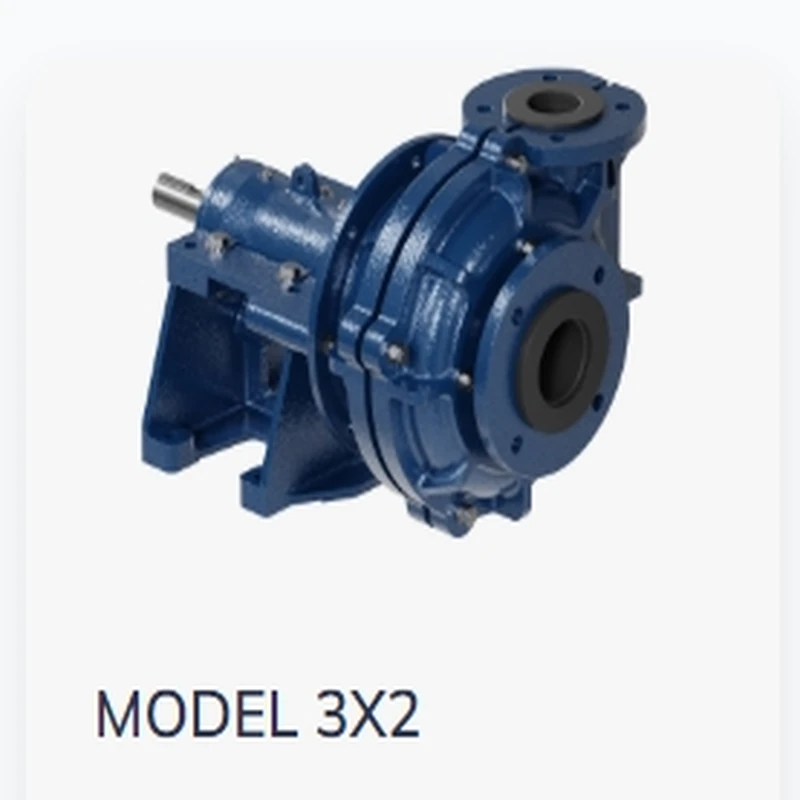

The 3×2 Horizontal Slurry Pump is a compact option for low-to-moderate-flow abrasive slurry applications. It is suitable for installations where space is limited and moderate head requirements need to be met.
Maximum flow: 140 m³/h
Maximum head: 65 m

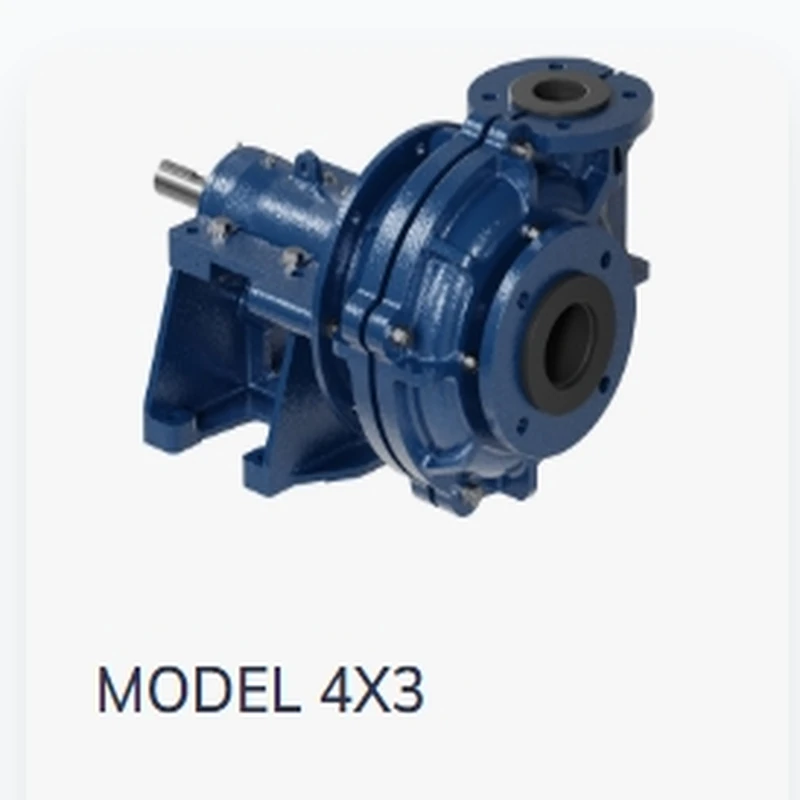

Model 4×3 Horizontal Slurry Pump
The 4×3 Horizontal Slurry Pump is a versatile, medium-duty model designed for general slurry handling in mineral processing, coal handling and industrial operations.
Maximum flow: 300 m³/h
Maximum head: 70 m

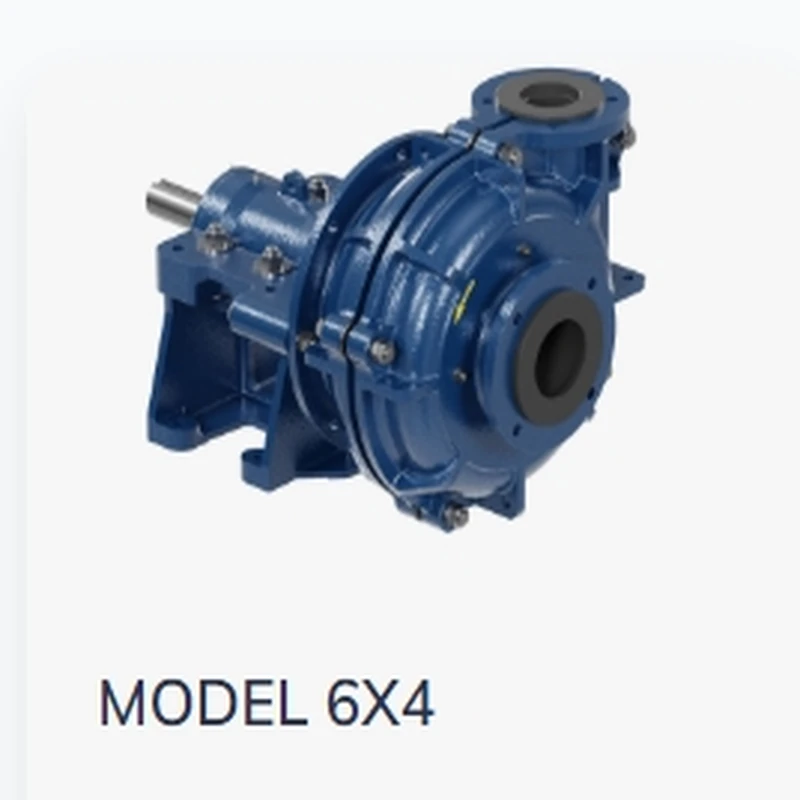

Model 6×4 Horizontal Slurry Pump
The 6×4 Horizontal Slurry Pump is designed for heavy-duty applications involving abrasive and corrosive slurries in demanding processing environments.
Maximum flow: 500 m³/h
Maximum head: 60 m

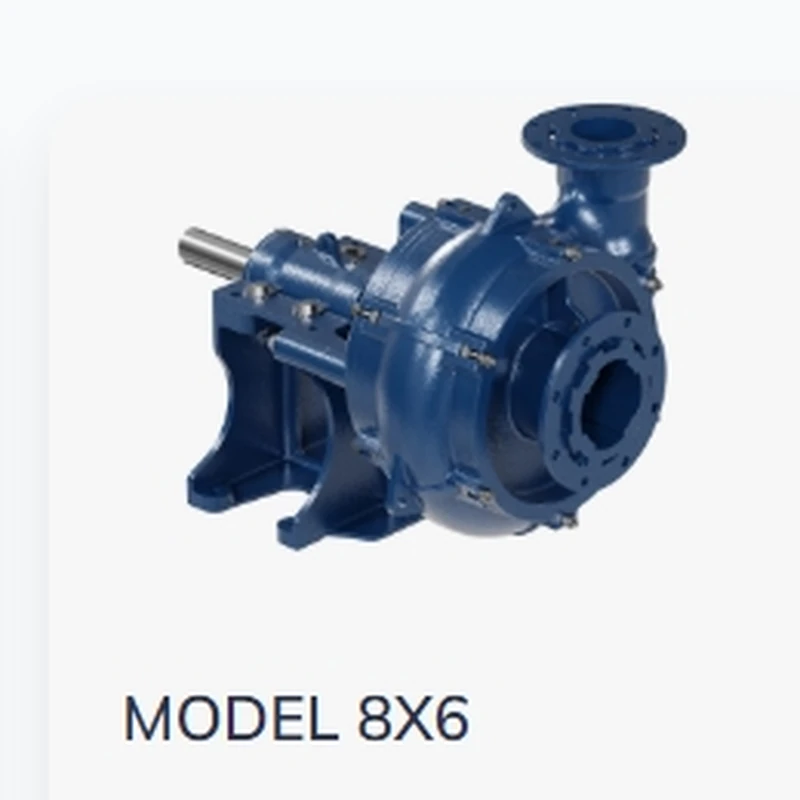

Model 8×6 Horizontal Slurry Pump
The 8×6 Horizontal Slurry Pump is a large-capacity option for severe-duty applications involving high flow rates, coarse particles and extended operating requirements.
Maximum flow: 1,000 m³/h
Maximum head: 50 m
Applications of Horizontal Slurry Pumps
Horizontal slurry pumps are used to transport liquid mixtures containing suspended solids in industrial processes. Mineralx Flowtech identifies mining, mineral processing, construction and wastewater treatment among the applications for its slurry pump range.
Suitable for abrasive slurry transportation associated with mineral processing and mining operations.
Coal Handling
The 4×3 model is identified for coal-handling and general-purpose slurry applications.
Sand, Gravel and Aggregate
Horizontal slurry pumps can be considered for suitable abrasive material transport and aggregate-processing duties.
Mill Discharge and Cyclone Feed
The pump range is relevant to mineral-processing circuits that require slurry transfer between process stages.
Tailings and Waste Transfer
Applications include tailings handling, slag transfer and suitable industrial waste transportation.
Construction and Infrastructure
Horizontal slurry pumps can be considered for appropriate construction-related slurry handling requirements.
Wastewater Treatment
The range is suitable for relevant wastewater treatment and solids-laden fluid handling applications, subject to pump selection.
For the full published product range and application information, visit the Mineralx Flowtech Slurry Pumps page.
Benefits of Horizontal Slurry Pumps India
Designed for Abrasive Applications
Wear-resistant liners and heavy-duty construction help address the wear associated with abrasive slurry handling.
Multiple Capacity Options
The 3×2, 4×3, 6×4 and 8×6 models provide options for different flow and head requirements.
Maintenance Considerations
Mineralx Flowtech lists interchangeable liners and parts as features that can simplify servicing and reduce maintenance complexity.
The product range covers a variety of industries and slurry-transfer duties, from mineral processing to industrial waste handling.
Selection by Operating Requirements
Customers can compare models according to their required flow rate, head and process application before confirming the appropriate pump.
Technical Information to Provide When Enquiring
For an accurate model recommendation, provide the supplier with:
Required flow rate in m³/h
Required delivery head in metres
Type of slurry or material being pumped
Solids concentration and particle characteristics
Installation and drive arrangement
Operating hours and duty requirements
Site and delivery location
This information helps the supplier assess the suitable model and confirm the applicable performance curve, materials and configuration.
Manufacturer and Supplier Information
Mineralx Flowtech Pvt Ltd.
S.F. No. 435/1A, Palathurai Road, Mettangadu, Madukkarai, Coimbatore – 641105, Tamil Nadu, India.
Website: https://www.mineralx.in/
These contact details are published on the company’s website.
Supplier Location: Coimbatore, Tamil Nadu, India.
For delivery to your project location elsewhere in India, contact Mineralx Flowtech to confirm supply availability, logistics and service support.
Explore Related Products on TradersInd
Explore related industrial products, including:
Vertical Slurry Pumps
Industrial Process Pumps
Pump Wear Parts
Industrial Pumping Equipment
Link each item to its relevant TradersInd category or product page when available.
Enquire Through TradersInd
Looking for a horizontal slurry pump for your plant or processing application? Send an enquiry through TradersInd with your required model, flow rate, head and application to request product details, pricing and availability from Mineralx Flowtech.
Frequently Asked Questions
1. What are Horizontal Slurry Pumps India used for?
Horizontal slurry pumps transport abrasive or solids-laden liquid mixtures in applications such as mining, mineral processing, coal handling, construction and wastewater treatment.
2. Which horizontal slurry pump models are available?
Mineralx Flowtech lists four models: 3×2, 4×3, 6×4 and 8×6.
The published maximum flow rate is 140 m³/h, with a maximum head of 65 m.
4. What is the maximum flow rate of the 4×3 model?
The published maximum flow rate is 300 m³/h, with a maximum head of 70 m.
5. What is the maximum flow rate of the 6×4 model?
The published maximum flow rate is 500 m³/h, with a maximum head of 60 m.
6. What is the maximum flow rate of the 8×6 model?
The published maximum flow rate is 1,000 m³/h, with a maximum head of 50 m.
7. Can horizontal slurry pumps handle abrasive materials?
Yes. Mineralx Flowtech designs its slurry pumps for abrasive applications and lists wear-resistant liners, heavy-duty casings and high-performance impellers among their features.
Mineralx Flowtech describes interchangeable liners and parts as features of its horizontal slurry pump range. Confirm compatible replacement components for the selected model with the supplier.
Compare the required flow rate, head, slurry properties, solids concentration, particle characteristics and installation requirements. Ask the supplier to confirm the suitable model against its performance curve.
10. How can I request a price for Horizontal Slurry Pumps India?
Send an enquiry through TradersInd with your preferred model, required capacity, application and delivery location. Confirm the current price, configuration, availability and delivery schedule with Mineralx Flowtech.
