Introduction

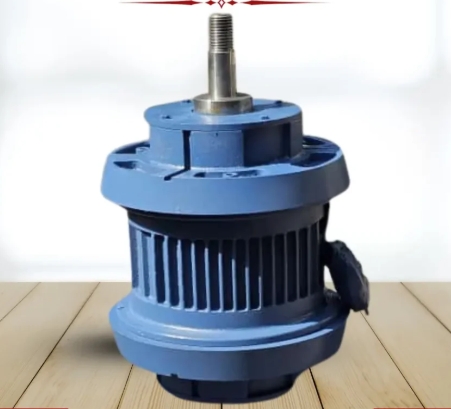

Double Flange Vibratory Motor Ahmedabad from Pavitra Industries is a heavy-duty industrial vibration motor designed for applications requiring high vibration force, long-duty cycles and robust construction. The motor uses a Mild Steel (MS) body and a double-flange mounting arrangement for industrial equipment.
With a power range of 1 HP to 10 HP, 3-phase 415V operation and multiple RPM options, the motor can support various industrial vibration requirements. Moreover, its S1 continuous-duty design, IP55/IP65 protection and F/H insulation classes make it suitable for demanding operating environments.
What Is a Double Flange Vibratory Motor?
A Double Flange Vibratory Motor is an industrial vibration motor designed with a double-flange mounting arrangement, allowing the motor to be securely integrated into suitable vibration equipment.
The motor generates controlled centrifugal vibration force that can assist with material movement, screening, feeding, compaction and discharge processes.
Therefore, it is suitable for equipment such as:
- Vibrating screens
- Hopper dischargers
- Compaction tables
- Sand mould systems
- Concrete block machines
- Feeder machines
These applications are specifically identified in the supplied manufacturer material.
Key Features of Double Flange Vibratory Motor Ahmedabad
Heavy-Duty MS Construction
The motor uses a heavy-duty Mild Steel welded structure with ribbed reinforcement, supporting robust industrial operation.
Double Flange Mounting
The double-flange mounting configuration provides secure integration with compatible industrial machinery.
High-Load Bearings
The motor uses NJ-series cylindrical roller bearings, designed for high load capacity.
Precision Ground Shaft
The shaft uses EN8/EN9 material with hardened and precision-ground construction.
Natural Air Cooling
The ribbed external surface supports natural air cooling during operation.
Adjustable Unbalance Weights
Adjustable unbalance weights allow vibration tuning according to application requirements.
Corrosion-Resistant Finish
The motor receives an epoxy powder-coated finish for improved corrosion resistance.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Double Flange Vibratory Motor |
| Power Range | 1 HP to 10 HP |
| Mounting | Double Flange – Top / Centre Flange |
| Voltage | 415V ±10%, 3 Phase |
| Custom Voltage | Available |
| Frequency | 50 Hz |
| RPM Options | 750 / 1000 / 1500 / 3000 RPM |
| Body Material | MS – Mild Steel |
| Insulation Class | F / H |
| Protection Class | IP55 / IP65 |
| Duty | S1 – Continuous |
| Ambient Temperature | Up to 50°C |
| Bearing | NJ Series Cylindrical Roller Bearing |
| Shaft | EN8/EN9, Hardened & Precision Ground |
| Cooling | Natural Air Cooling |
| Finish | Epoxy Powder Coated |
| Design Standards | IS: 325 / IEC: 60034 |
All of the above specifications are taken from the supplied product document.
Performance Range

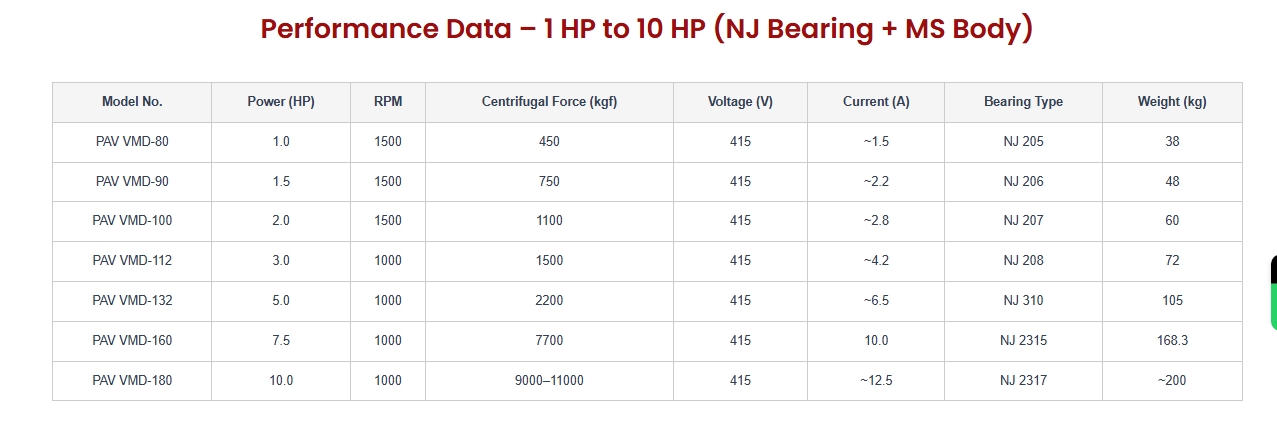

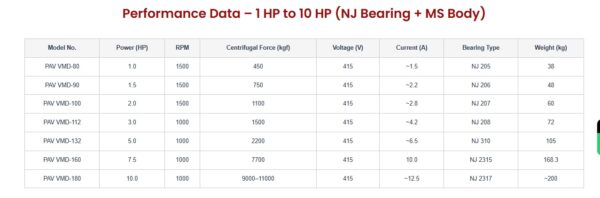

The supplied technical material also contains a 1 HP–10 HP performance table with model numbers, RPM, centrifugal force, voltage, current, bearing type and weight. Because the table values in the supplied image are not sufficiently clear for reliable transcription, I recommend using the manufacturer’s original technical sheet for those exact model-wise values rather than publishing guessed numbers.
Benefits
Double Flange Vibratory Motor Ahmedabad can provide several benefits for industrial vibration applications:
- Heavy-duty construction
- High vibration-force capability
- Continuous S1-duty operation
- Multiple RPM options
- Adjustable vibration tuning
- High-load cylindrical roller bearings
- Natural cooling arrangement
- IP55/IP65 protection options
- F/H insulation options
- Suitable for demanding industrial environments
- Corrosion-resistant epoxy powder coating
- Custom voltage availability
Furthermore, the combination of adjustable unbalance weights and multiple RPM options allows the motor configuration to be selected according to the intended application.
Applications
Vibrating Screens
Suitable for vibration-based screening and material separation systems.
Hopper Dischargers
Used to assist material discharge from hoppers and similar storage systems.
Compaction Tables
Suitable for vibration-based compaction applications.
Sand Moulds
Can be used in vibration processes associated with sand mould applications.
Concrete Block Machines
Suitable for vibration and compaction requirements in concrete block manufacturing.
Feeder Machines
Used in industrial feeding systems where controlled vibration helps move material.
These applications are listed in the supplied Pavitra Industries product information.
Industries & Use Areas
The product is suitable for industrial applications involving:
- Construction equipment
- Concrete and block manufacturing
- Material handling
- Screening systems
- Feeding systems
- Foundry-related applications
- Sand mould applications
- Industrial compaction
- Bulk material handling
Why Choose Pavitra Industries?
Pavitra Industries provides this product with a focus on heavy-duty construction and industrial vibration requirements.
Key product characteristics include:
- MS welded construction
- Ribbed reinforcement
- NJ-series cylindrical roller bearings
- EN8/EN9 precision-ground shaft
- Adjustable unbalance weights
- Epoxy powder coating
- Multiple RPM configurations
- Continuous S1-duty capability
Areas Served
Ahmedabad, Gujarat, India
For the TradersInd listing, use Areas Served rather than “Supply Area”:
Areas Served: Ahmedabad, Gujarat and other locations subject to manufacturer availability.
If Pavitra Industries confirms nationwide supply, you can change this to:
Areas Served: Ahmedabad, Gujarat and across India
Product Enquiry
If you are looking for a Double Flange Vibratory Motor Ahmedabad, provide the following information when submitting an enquiry:
- Required HP
- Required RPM
- Application
- Machine type
- Required voltage
- Quantity
- Installation requirements
- Delivery location
This will help the manufacturer identify the appropriate motor configuration.
FAQs
What is a Double Flange Vibratory Motor?
A Double Flange Vibratory Motor is an industrial vibration motor with a double-flange mounting arrangement designed for applications requiring controlled and high-force vibration.
Who manufactures the Double Flange Vibratory Motor?
The motor is manufactured by Pavitra Industries, Ahmedabad, Gujarat.
What is the power range of this vibratory motor?
The supplied product range is 1 HP to 10 HP.
What voltage does the motor use?
The standard specification is 415V ±10%, 3 Phase, with custom voltage available.
What RPM options are available?
The specified RPM options are 750, 1000, 1500 and 3000 RPM.
Where are Double Flange Vibratory Motors used?
They are used in vibrating screens, hopper dischargers, compaction tables, sand moulds, concrete block machines and feeder machines.
What type of bearings are used?
The motor uses NJ-series cylindrical roller bearings designed for high load capacity.
Is the vibration adjustable?
Yes. The supplied product information specifies adjustable unbalance weights for easy vibration tuning.
Is the motor suitable for continuous operation?
The specified duty cycle is S1 – Continuous.
