Bench Grinder Machine Ahmedabad Gujarat
Bench Grinder Machine Ahmedabad Gujarat by Pavitra Industries is designed for grinding, sharpening, deburring, polishing and finishing applications in workshops and industrial environments. Manufactured in Ahmedabad, Gujarat, the Bench Grinder range includes compact workshop models as well as heavy-duty grinder options for demanding applications.
Furthermore, the range shown in the provided specifications covers 0.12 HP to 5 HP, with bench grinder operating speeds generally around 2,800–3,000 RPM. Different models are available with different wheel sizes, shaft diameters, power ratings and phase options.
Key Features of Bench Grinder Machine Ahmedabad Gujarat
- Heavy-duty cast-iron or steel construction
- Dynamically balanced rotor design
- Smooth and stable grinding operation
- Double-sided grinding wheel mounting
- Adjustable tool rests
- Spark guards for safer operation
- Dust-proof bearings
- Heavy-duty shaft construction
- Single-phase and three-phase options
- Available in different power ratings
- Compatible with pedestal stands and selected accessories
- Suitable for workshop and industrial applications
Moreover, the provided specifications mention dual-bearing arrangements for smaller units and four-bearing configurations for higher-power units.

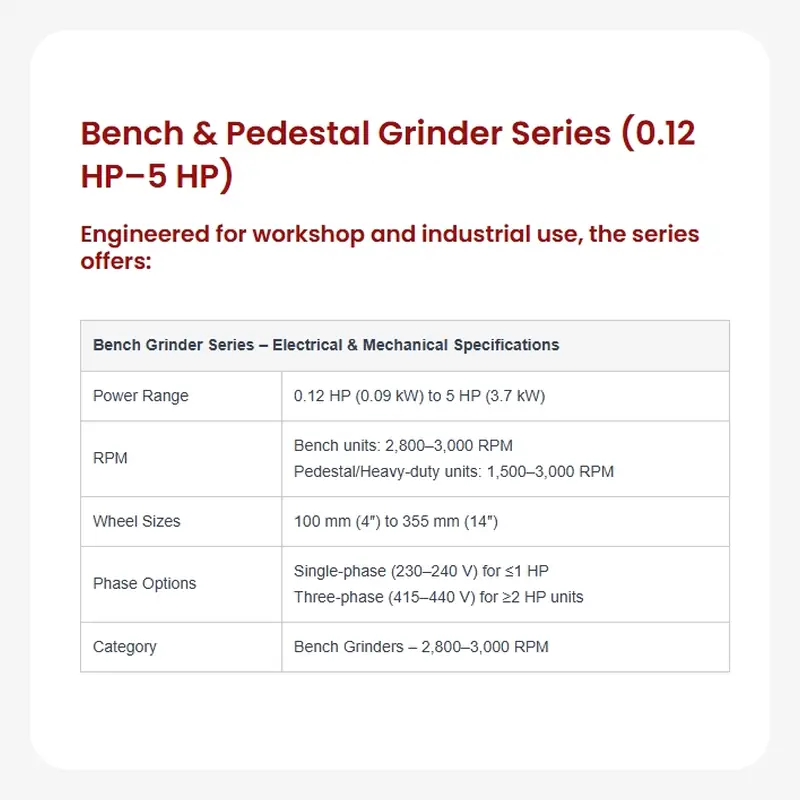

Bench Grinder Machine Specifications
The provided product information shows the following range:
| Specification | Details |
|---|---|
| Power Range | 0.12 HP to 5 HP |
| Bench Grinder Speed | 2,800–3,000 RPM |
| Heavy-Duty/Pedestal Speed | 1,500–3,000 RPM |
| Wheel Size Range | 100 mm to 355 mm |
| Single-Phase Voltage | 230–240 V |
| Three-Phase Voltage | 415–440 V |
| Construction | Heavy-duty cast iron/steel |
| Bearings | Dust-proof / heavy-duty bearing arrangements |
| Mounting | Bench / pedestal options |
| Applications | Grinding, sharpening, deburring and polishing |
Bench Grinder Models
| Model | Power | Wheel Size | RPM | Approx. Weight |
|---|---|---|---|---|
| PI-BG-012 | 0.09 kW / 0.12 HP | 100 × 13 mm | 2,800–3,000 | ~9 kg |
| PI-BG-025 | 0.18 kW / 0.25 HP | 100 × 20 mm | 2,800–3,000 | 13 kg |
| PI-BG-050 | 0.37 kW / 0.50 HP | 150–200 mm | 2,800–3,000 | 22–26 kg |
| PI-BG-075 | 0.55 kW / 0.75 HP | 200 × 25 mm | 2,800–3,000 | 35 kg |
| PI-BG-100 | 0.75 kW / 1.00 HP | 250 × 25 mm | 2,800–3,000 | 45 kg |

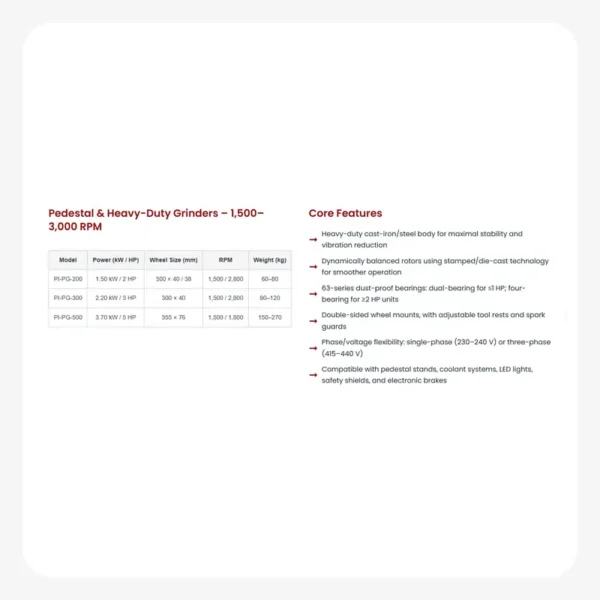

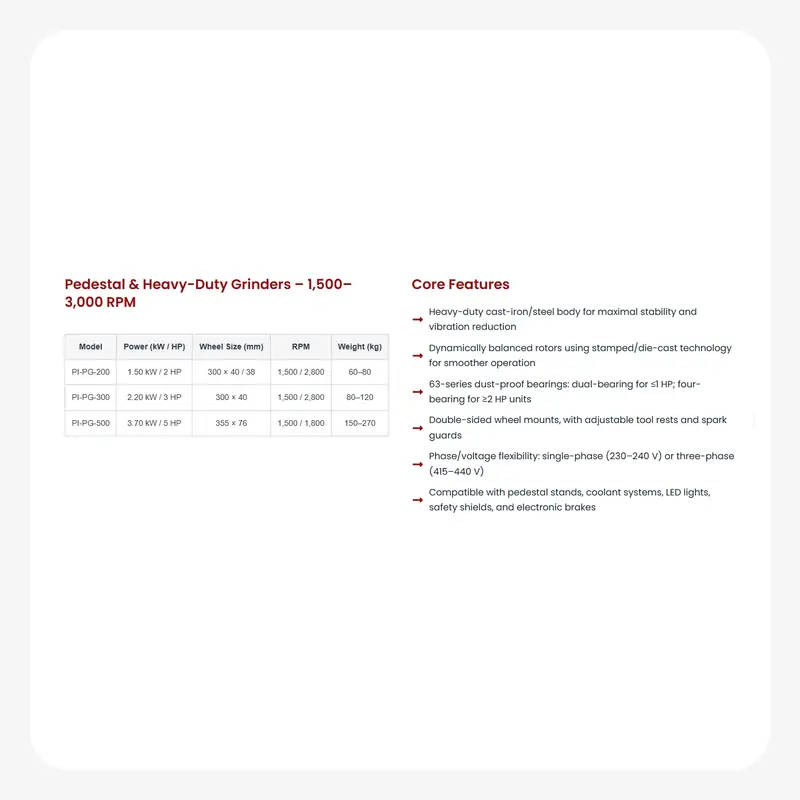

The images also show heavier 2 HP, 3 HP and 5 HP pedestal/heavy-duty grinder models, with larger wheel sizes and lower-speed options for demanding grinding applications.
Benefits of Bench Grinder Machine
Reliable Grinding Performance
The balanced rotor and robust construction support stable grinding and sharpening operations.
Heavy-Duty Construction
The cast-iron/steel body provides stability and helps reduce vibration during operation.
Multiple Power Options
Users can select a suitable model from compact 0.12 HP units through 5 HP heavy-duty models, depending on application requirements.
Flexible Power Options
The range includes single-phase and three-phase configurations, subject to the model.
Easy Workshop Operation
Adjustable tool rests and spark guards support convenient grinding and sharpening work.
Suitable for Continuous Industrial Use
The product information highlights models designed for workshop and industrial environments.
Applications
Bench Grinder Machine Ahmedabad Gujarat is suitable for:
- Fabrication workshops
- Engineering workshops
- Tool rooms
- Automotive workshops
- Metal workshops
- Foundries
- Machine shops
- General maintenance workshops
- Drill sharpening
- Chisel sharpening
- Lawn mower blade sharpening
- Deburring of welds
- Deburring of castings
- Precision shaping
- Metal finishing
- Polishing applications
Maintenance & Warranty
The provided product information specifies:
- 12-month limited warranty
- Models conform to IS-325 and IS-2223 as stated in the supplied material
- Insulation Class B/F motor quality as stated
- Load and balance testing before shipment
- Periodic grinding-wheel dressing recommended
- Proper grounding recommended
- Overload protection recommended
For the exact warranty terms, applicable standards, model specifications and installation requirements, buyers should confirm the details directly with Pavitra Industries.
Areas Served
Pavitra Industries is based in Ahmedabad, Gujarat. Enquiries can be made for Bench Grinder Machine supply and industrial requirements in:
- Ahmedabad
- Gujarat
- Surat
- Vadodara
- Rajkot
- Mumbai
- Pune
- Bangalore
- Chennai
- Hyderabad
- Delhi
- Coimbatore
- Other locations across India
Frequently Asked Questions
What is a Bench Grinder Machine?
A Bench Grinder Machine is a stationary grinding machine used for sharpening, grinding, deburring, polishing and finishing metal components and tools.
What power range is available?
The provided Bench Grinder range covers approximately 0.12 HP to 5 HP, including compact bench models and heavy-duty grinder models.
What is the operating speed?
The bench grinder models shown operate around 2,800–3,000 RPM, while some heavy-duty pedestal models operate between 1,500 and 3,000 RPM.
What wheel sizes are available?
The provided specifications show wheel sizes ranging from 100 mm to 355 mm, depending on the model.
Is the Bench Grinder available in single-phase and three-phase versions?
Yes. The provided specifications indicate single-phase 230–240 V and three-phase 415–440 V options, depending on the model and power requirement.
Where can a Bench Grinder Machine be used?
It can be used in fabrication shops, tool rooms, automotive workshops, foundries, engineering workshops and metalworking environments.
Can the machine be used for sharpening tools?
Yes. The supplied product information specifically mentions applications such as sharpening drills, chisels and lawn mower blades.
Who manufactures the Bench Grinder Machine?
The product is manufactured by Pavitra Industries, Ahmedabad, Gujarat.
Important Note :
The technical figures above are based on the provided product images/material. Model availability, voltage, wheel size, RPM, warranty, standards and other specifications should be confirmed with Pavitra Industries before purchase or enquiry. The TradersInd listing should be treated as a product/vendor information listing, not as an independent manufacturer specification sheet.
