Introduction
Needle Vibrator Motors manufactured by Pavitra Industries, Ahmedabad, Gujarat, are designed for efficient concrete compaction in construction and precast applications. These motors are available in 1 HP, 2 HP and 3 HP configurations with both single-phase and three-phase options.
The product range supports concrete work involving slabs, columns, beams, footings, foundations and precast elements. Moreover, the motors are designed for high-speed vibration and practical field operation with flexible shaft compatibility.
Additionally, the range offers different needle head sizes, shaft lengths and electrical configurations to suit different concrete compaction requirements.
Key Features of Needle Vibrator Motors
Efficient Concrete Vibration
The motor generates high-speed vibration to help compact fresh concrete and reduce unwanted air pockets.
1 HP to 3 HP Options
Pavitra Industries offers models ranging from 1 HP to 3 HP, providing options for different construction requirements.
Single-Phase & Three-Phase Models
Depending on the model, users can choose 230 V single-phase or 415 V three-phase configurations.

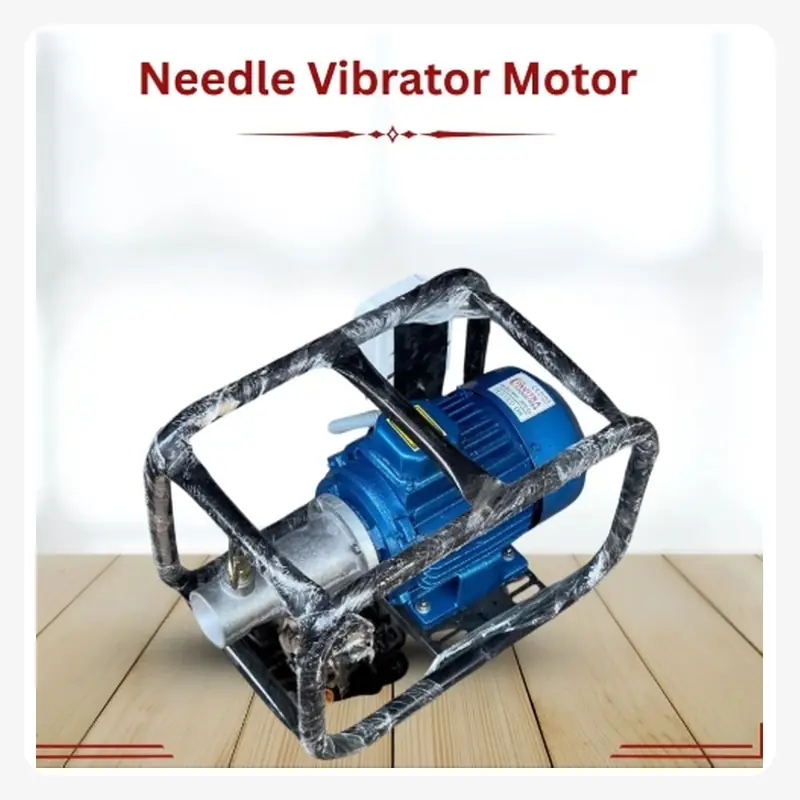

IP55 Protection
The product information indicates IP55 protection, helping the motor withstand demanding working environments.
Flexible Shaft Compatibility
The Needle Vibrator Motors can be used with flexible shafts of different lengths, including 4 m, 6 m and 8 m, depending on the model.
Multiple Needle Sizes
Compatible needle head options include 25 mm, 38 mm, 50 mm and 60 mm, subject to the selected configuration.
Thermal Protection
The motors feature thermal protection for safer operation during demanding concrete compaction work.
Low-Maintenance Design
The sealed motor and flexible shaft arrangement are designed for practical maintenance and regular construction use.
Benefits of Needle Vibrator Motors
- Efficient compaction of freshly poured concrete
- Helps improve concrete density and consistency
- Suitable for different construction applications
- Available in multiple power configurations
- Single-phase and three-phase options
- Supports different needle diameters
- Flexible shaft options for different working requirements
- IP55 protection
- Thermal protection for safer operation
- Suitable for professional construction and precast work
Furthermore, the availability of different motor capacities and needle sizes allows buyers to select a configuration according to their concrete compaction requirements.
Applications
Needle Vibrator Motors are suitable for:
- Concrete slabs
- RCC columns
- Beams
- Footings
- Foundations
- Precast concrete elements
- Construction sites
- Concrete casting applications
- General concrete compaction work
These motors can be useful for contractors, construction companies, precast manufacturers and other professionals involved in concrete work.

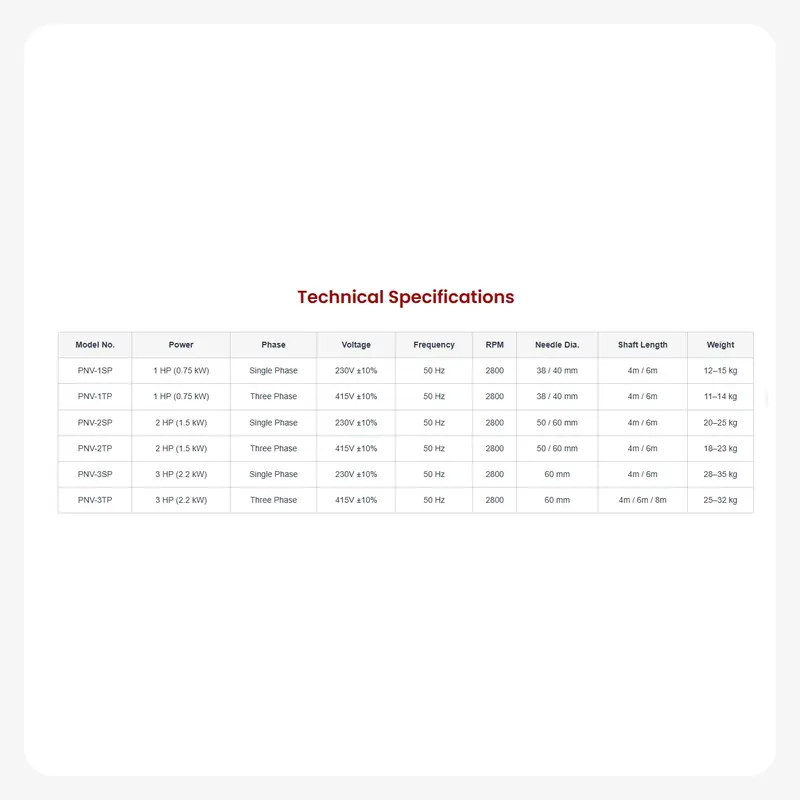

Technical Specifications
| Model | Power | Phase | Voltage | Frequency | RPM | Needle Diameter | Shaft Length | Weight |
|---|---|---|---|---|---|---|---|---|
| PNV-1SP | 1 HP (0.75 kW) | Single Phase | 230 V ±10% | 50 Hz | 2800 | 38 / 40 mm | 4 m / 6 m | 12–15 kg |
| PNV-1TP | 1 HP (0.75 kW) | Three Phase | 415 V ±10% | 50 Hz | 2800 | 38 / 40 mm | 4 m / 6 m | 11–14 kg |
| PNV-2SP | 2 HP (1.5 kW) | Single Phase | 230 V ±10% | 50 Hz | 2800 | 50 / 60 mm | 4 m / 6 m | 20–25 kg |
| PNV-2TP | 2 HP (1.5 kW) | Three Phase | 415 V ±10% | 50 Hz | 2800 | 50 / 60 mm | 4 m / 6 m | 18–23 kg |
| PNV-3SP | 3 HP (2.2 kW) | Single Phase | 230 V ±10% | 50 Hz | 2800 | 60 mm | 4 m / 6 m | 28–35 kg |
| PNV-3TP | 3 HP (2.2 kW) | Three Phase | 415 V ±10% | 50 Hz | 2800 | 60 mm | 4 m / 6 m / 8 m | 25–32 kg |
Note: Specifications may vary according to the selected model and configuration. Confirm the final specification with Pavitra Industries before purchase.
Accessories
Available accessories shown in the product information include:
- Needle heads – 25 mm
- Needle heads – 38 mm
- Needle heads – 50 mm
- Needle heads – 60 mm
- Flexible shafts with coupler
- Mounting tripods, optional
- Cable guards, optional
- Customized solutions as required
Why Choose Pavitra Industries Needle Vibrator Motors?
Pavitra Industries manufactures Needle Vibrator Motors in Ahmedabad, Gujarat, with multiple power, phase and needle-size configurations.
Therefore, buyers can select a suitable model based on their electrical supply, concrete application, required needle diameter and shaft length.
The range is particularly suitable for construction contractors, infrastructure projects, precast concrete manufacturers and professional concrete workers.
Supply Area
Needle Vibrator Motors by Pavitra Industries can be enquired for supply across:
- Ahmedabad
- Gujarat
- Vadodara
- Surat
- Rajkot
- Gandhinagar
- Anand
- Bharuch
- Vapi
- Mehsana
- India
For exact availability, delivery and supply locations, contact Pavitra Industries.
FAQs
What are Needle Vibrator Motors used for?
Needle Vibrator Motors are used for compacting freshly poured concrete in slabs, columns, beams, footings, foundations and precast elements.
What power options are available?
The product range shown includes 1 HP, 2 HP and 3 HP models.
Are single-phase and three-phase models available?
Yes. The range includes both single-phase and three-phase configurations.
What is the operating speed?
The listed models operate at approximately 2800 RPM.
What needle sizes are available?
The accessories and specifications show needle options including 25 mm, 38 mm, 40 mm, 50 mm and 60 mm, depending on the model.
What shaft lengths are available?
Depending on the model, shaft lengths include 4 m, 6 m and 8 m.
Where are these Needle Vibrator Motors manufactured?
The product is manufactured by Pavitra Industries in Ahmedabad, Gujarat.
Are these motors suitable for construction sites?
Yes. The listed applications include concrete slabs, columns, beams, footings, foundations and precast elements.
What protection does the motor have?
The product information specifies IP55 protection and thermal protection.
How can I enquire about the product?
Buyers can send an enquiry through TradersInd to contact Pavitra Industries regarding model selection, pricing, availability and supply.
